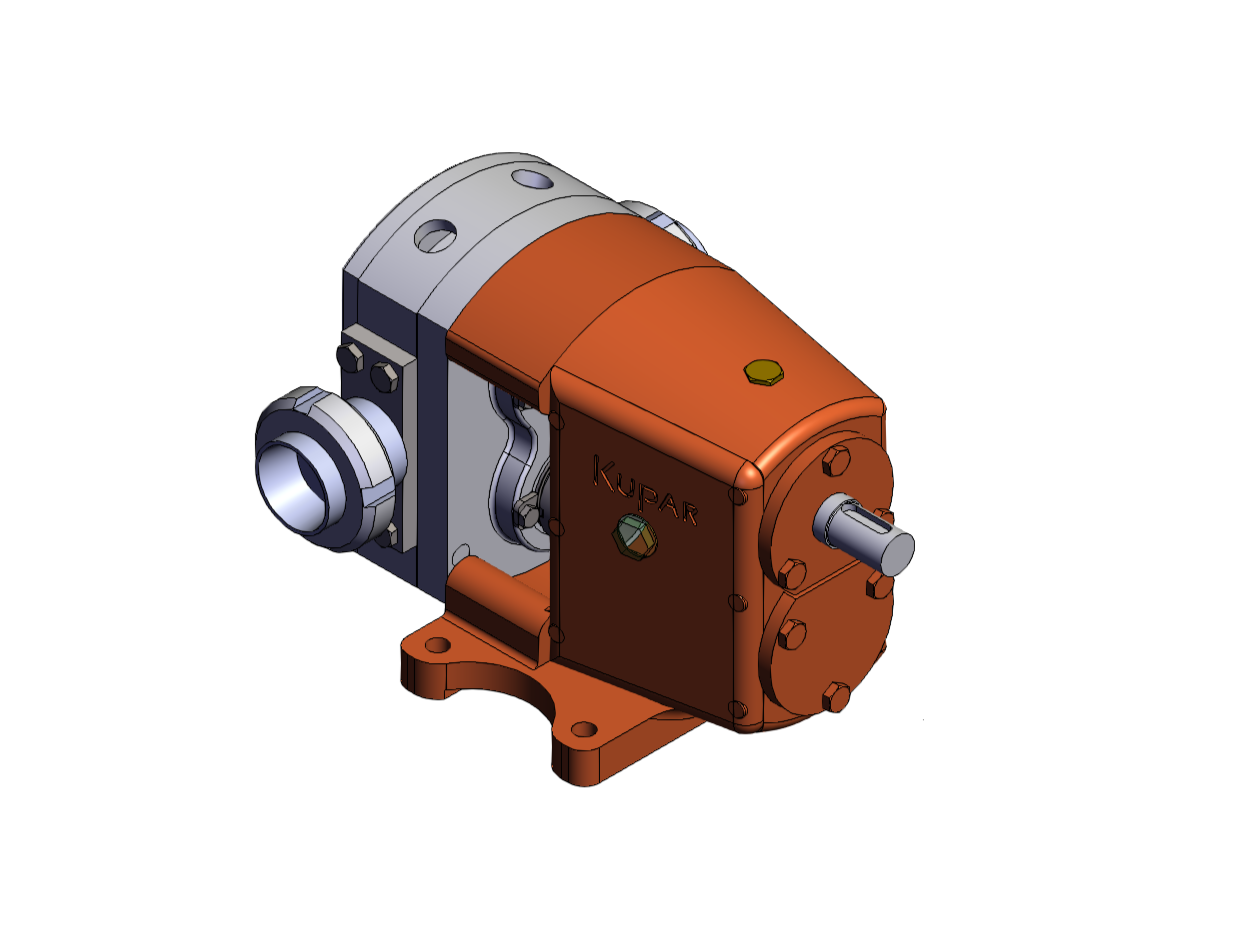

KLP1½"

TECHNICAL SPECIFICATIONS

• Inlet-Outlet: 1½" 180° Flange / Union
• Flow Rate: 0,125 L/rev
• Maximum Flow: 3,6 m³/h
• Pressure Range: 2-14 Bar
• Temperature Range: 20-200°
• Viscosity: 100- 25 000 Cp
• Body Material: GG25 Cast Iron / AISI316 Stainless Steel
• Gear Material: AISI316 Stainless Steel
• Bushing: Bearing
• Sealing: Packing Gland / Mechanical Sealing
• Accessories: Heating Jacket
• Dimensions: 32,5 cm x 21,5 cm x 20 cm Weight: 33,2 KG
